Gene Set Similarity Tutorial • markeR

Installation

The user can install the development version of markeR from GitHub with:

# install.packages("devtools")
devtools::install_github("DiseaseTranscriptomicsLab/markeR")

Signature Similarity

Even if a user-defined gene signature demonstrates strong discriminatory power between conditions, it may reflect known biological pathways rather than novel mechanisms. To address this, the geneset_similarity() function computes pairwise Jaccard indices or log odds ratios (logOR) between user-provided gene signatures and a reference set, quantifying their overlap as a percentage or a statistical enrichment.

Users can compare their signatures to:

Custom gene sets, defined manually, or
MSigDB collections, via the msigdbr package.

The function provides options to:

Filter by Jaccard index threshold, using jaccard_threshold
Filter by odds ratio and p-value, using or_threshold and pval_threshold
Limit the number of top-matching reference signatures shown, using num_sigs_toplot

Similarity via Jaccard Index

The Jaccard index measures raw set overlap:

$\text{Jaccard}(A, B) = \frac{|A \cap B|}{|A \cup B|}$

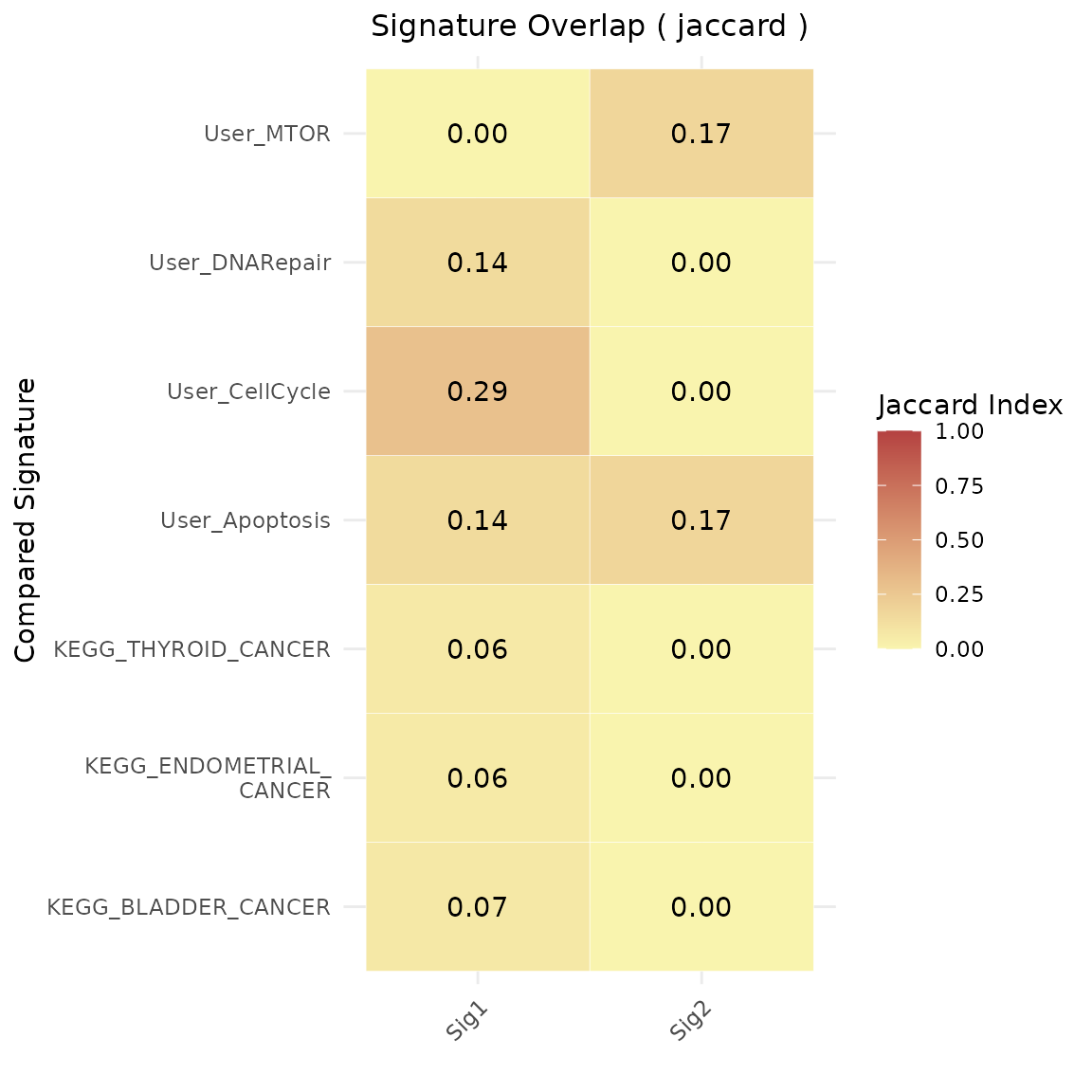

Example 1: Compare against user-defined and MSigDB gene sets

# Example data
signature1 <- c("TP53", "BRCA1", "MYC", "EGFR", "CDK2")
signature2 <- c("ATXN2", "FUS", "MTOR", "CASP3")

signature_list <- list(
  "User_Apoptosis" = c("TP53", "CASP3", "BAX"),
  "User_CellCycle" = c("CDK2", "CDK4", "CCNB1", "MYC"),
  "User_DNARepair" = c("BRCA1", "RAD51", "ATM"),
  "User_MTOR" = c("MTOR", "AKT1", "RPS6KB1")
)

geneset_similarity(
  signatures = list(Sig1 = signature1, Sig2 = signature2),
  other_user_signatures = signature_list,
  collection = "C2",
  subcollection = "CP:KEGG_LEGACY",
  jaccard_threshold = 0.05,
  msig_subset = NULL,
  metric = "jaccard"
)

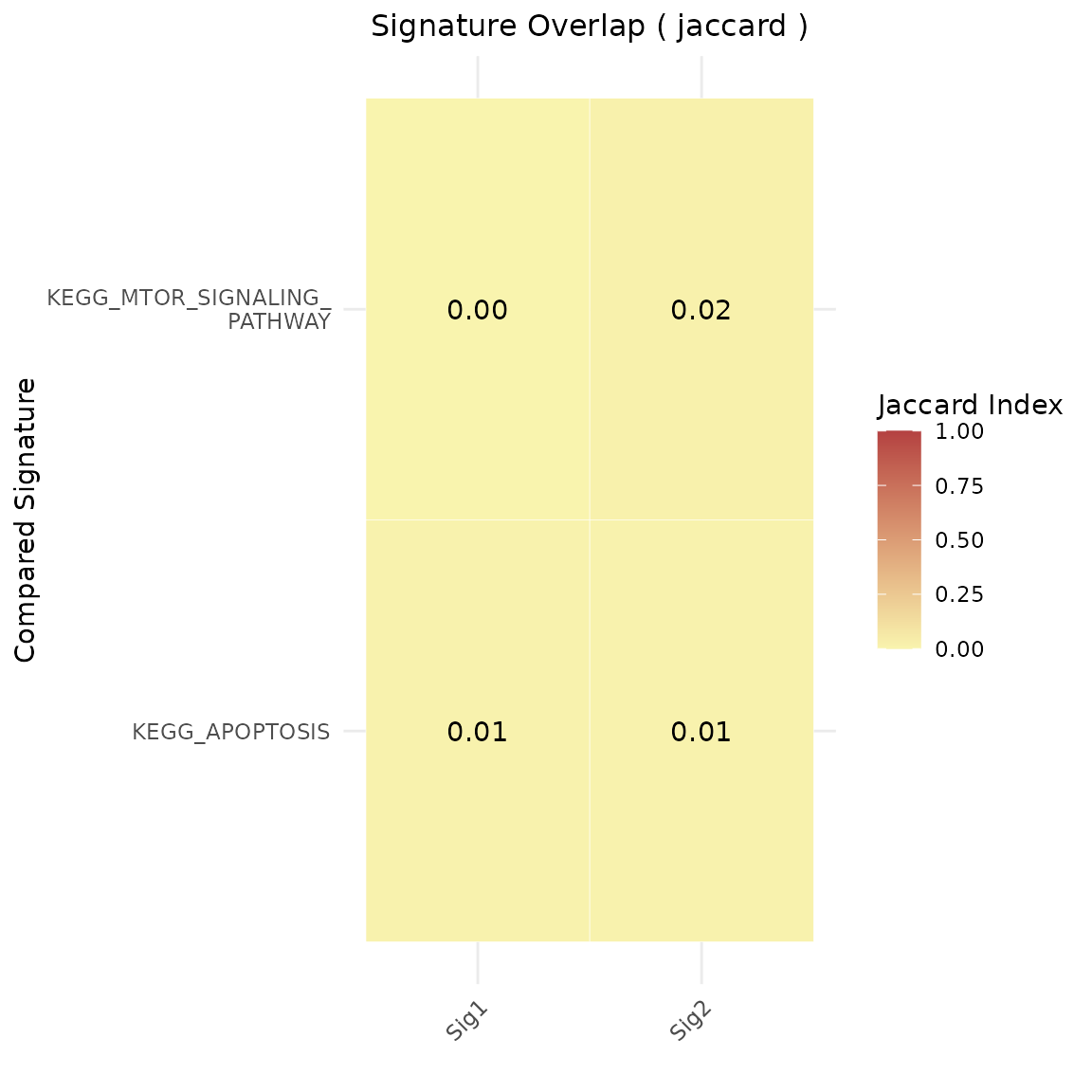

Example 2: Restrict comparison to a custom subset of MSigDB

geneset_similarity(
  signatures = list(Sig1 = signature1, Sig2 = signature2),
  other_user_signatures = NULL,
  collection = "C2",
  subcollection = "CP:KEGG_LEGACY",
  jaccard_threshold = 0,
  msig_subset = c("KEGG_MTOR_SIGNALING_PATHWAY", "KEGG_APOPTOSIS", "NON_EXISTENT_PATHWAY"),
  metric = "jaccard"
)

Similarity via Log Odds Ratio

The log odds ratio (logOR) provides a statistically grounded alternative for assessing gene set similarity. It measures enrichment of one set within another, relative to a defined background or gene universe, using a 2×2 contingency table and a one-sided Fisher’s exact test.

Log odds ratio (logOR):
Derived from contingency tables using:
- Genes in both sets
- Genes in one but not the other
- Gene universe as background
  Log-transformed odds ratios are visualized; statistical significance is assessed via the adjusted p-value.

Note: When using metric = "odds_ratio", the universe parameter must be supplied.

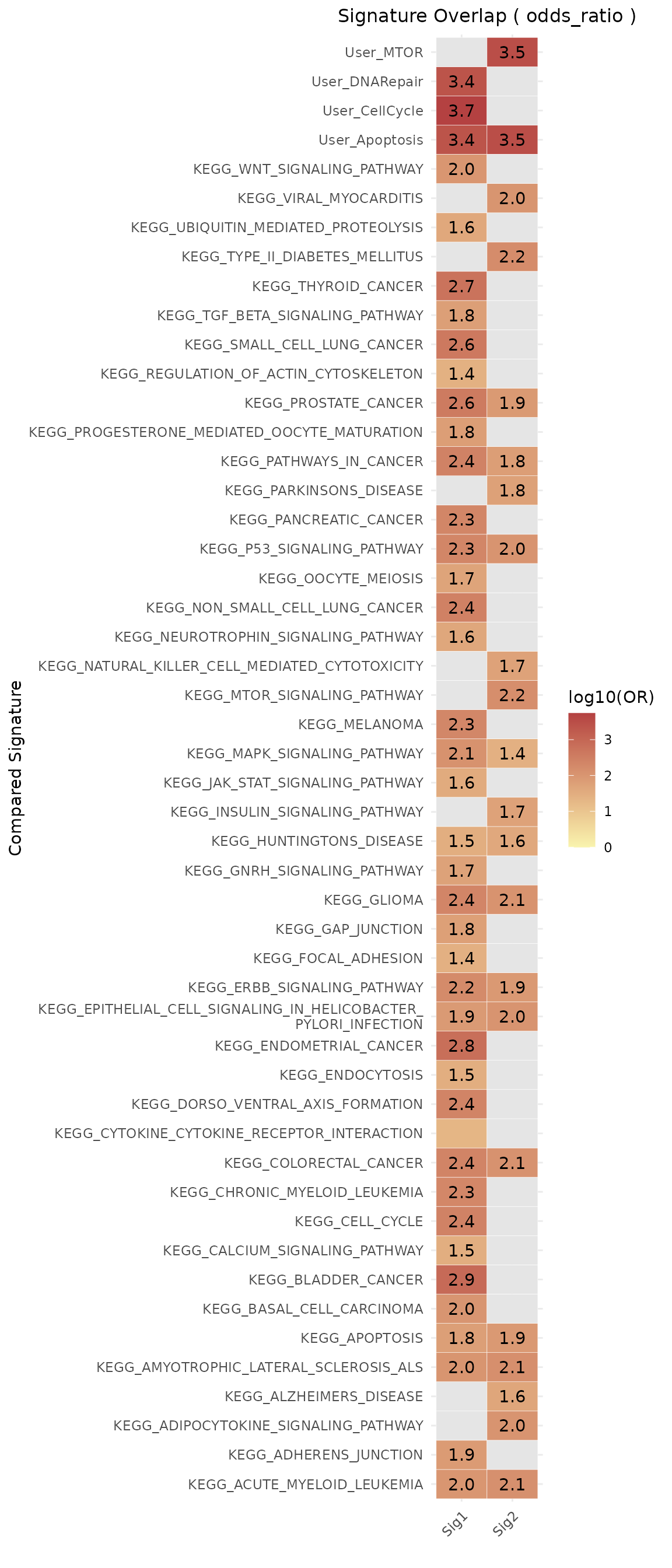

Example 3: Compare against user-defined and MSigDB gene sets

# Define gene universe (e.g., genes from HPA or your dataset)
gene_universe <- unique(c(
  signature1, signature2,
  unlist(signature_list),
  msigdbr::msigdbr(species = "Homo sapiens", category = "C2")$gene_symbol
))

## Warning: The `category` argument of `msigdbr()` is deprecated as of msigdbr 10.0.0.
## ℹ Please use the `collection` argument instead.
## This warning is displayed once every 8 hours.
## Call `lifecycle::last_lifecycle_warnings()` to see where this warning was
## generated.

geneset_similarity(
  signatures = list(Sig1 = signature1, Sig2 = signature2),
  other_user_signatures = signature_list,
  collection = "C2",
  subcollection = "CP:KEGG_LEGACY",
  metric = "odds_ratio",
  universe = gene_universe,
  or_threshold = 1,
  pval_threshold = 0.05,
  width_text=50
)
